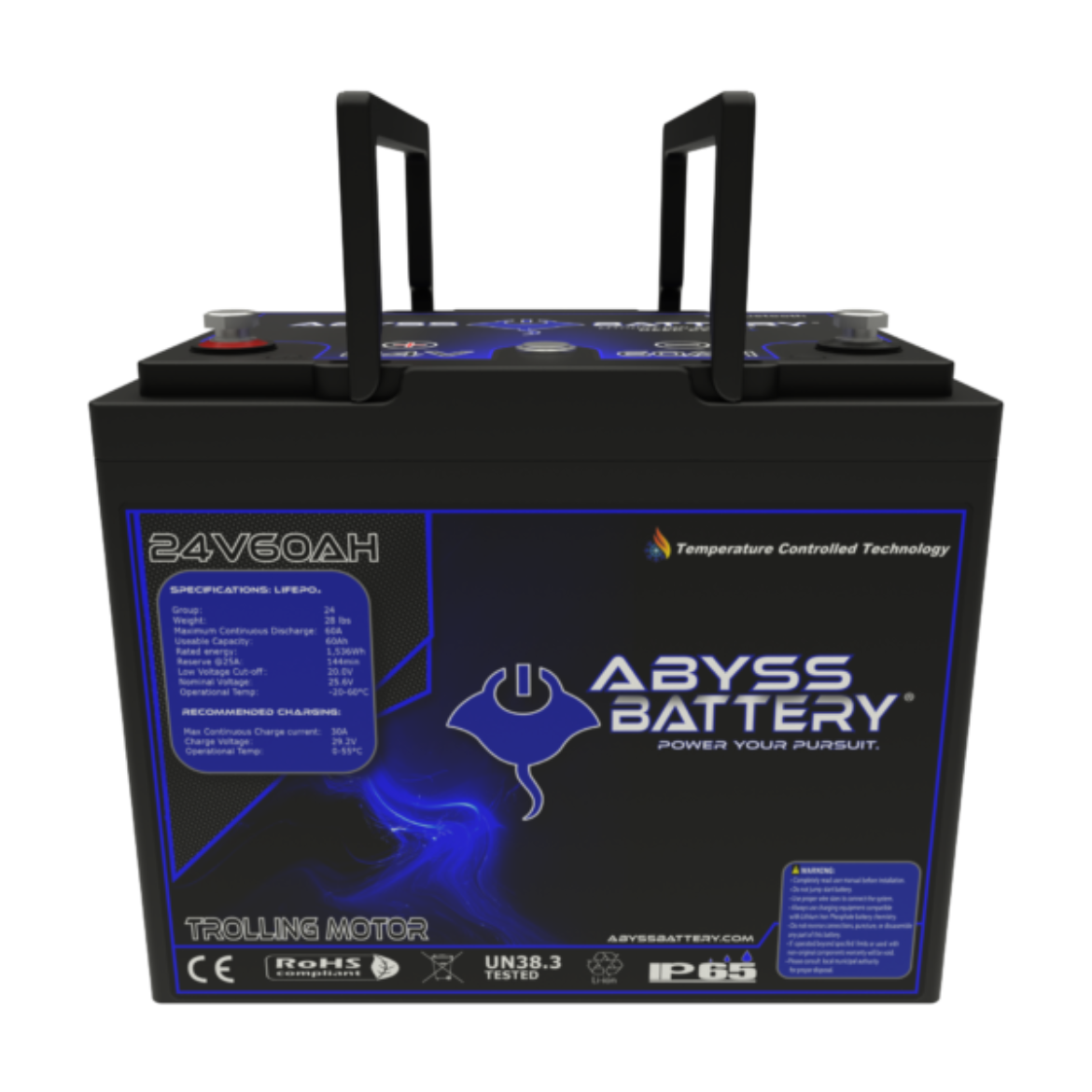

ABYSS 24V 60Ah Lithium Trolling Motor Battery

Description

Abyss 24v 60Ah Lithium Trolling Motor Battery

Swap your unreliable trolling batteries for a powerful ABYSS® 24V 60AH Lithium Trolling Motor Battery. This Group 24 lithium marine battery is compact, lightweight, and will free up storage space on your boat by replacing two 12 volt Lead-acid or AGM group 31 batteries in series.

Whether you’re trolling in calm weather or fighting the wind, this battery will back you up even with load-heavy consumption. Ideal for deep cycle applications in diverse marine environments, seasons, and temperatures, our 24V 60Ah trolling motor lithium battery gives you a long and steady draw to last even for multi-day fishing trips. Just set it, charge it, and off you go.

TECHNICAL SPECIFICATIONS

• Nominal Voltage               24V
• Nominal Capacity             60Ah
• Parallel Connection         Maximum 6 units
• Series Connection            Maximum 2 units
• Bluetooth Management System (BMS)   8S60A (Available on Android/iOS)
• Charge Voltage  28.8±0.4V
• Standard Charge Current               12A
• Fast Charge Current         30A
• Max. Continuous Discharge Current          60A
• Peak Discharge Current  500A (300ms)
• Discharge Cut-off Voltage              20V
• Cycle Life              3000 cycles @ 100% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD
• Self Discharge Rate          Less than 3% per month
• Charge Efficiency              100% @0.2C
• Discharge Efficiency         98-100% @1C
• Operating Charge Temperature Range     0°C to 55°C (32°F to 131°F)
• Operating Discharge Temperature Range                -20°C to 60°C (-4°F to 140°F)
• Storage Temperature Range         -5°C to 45°C (23°F to 113°F)
• Physical Specifications
• Dimensions: 10.2″ x 6.69″ x 8.18″ in
• 260×170×208mm (Group 24)
• Approximate Weight: 26 lbs. (12 Kg)
• Terminal Type: M8
• Case Color/Material: Black Plastic case (ABS)
• IP Rating: IP65
• Cell Type: Cylindrical LiFePO4 cell

Additional Information

The battery features Bluetooth connectivity, allowing for monitoring via Android and iOS devices.
Compliant with international standards including UL 1642, IEC62133, IEC62619, CE, UN38.3, and ROHS.
Implemented strict quality control measures ensure reliability and consistency.
