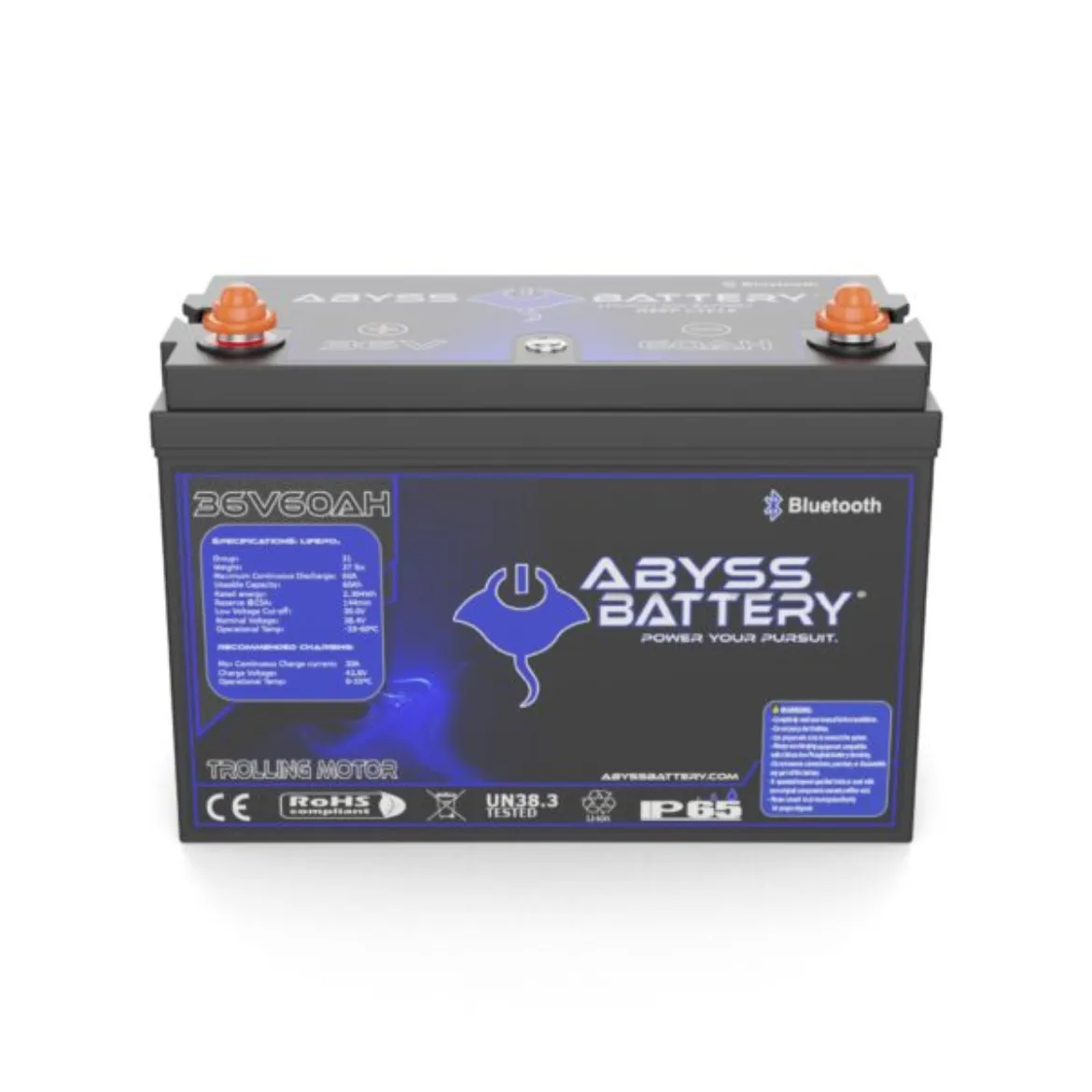

ABYSS 36V 60Ah Lithium Trolling Motor Battery

Description

Abyss 36v 60Ah Lithium Trolling Motor Battery

Swap your unreliable trolling batteries for a powerful Abyss Battery® 36V 60Ah Lithium Trolling Motor Battery. This Group 31 lithium marine battery is compact, lightweight, and will free up storage space on your boat by replacing three 12 volt Lead-acid or AGM group 31 batteries in series.

Whether you’re trolling in calm weather or fighting the wind, this battery will back you up even with load-heavy consumption. Ideal for deep cycle applications in diverse marine environments, seasons, and temperatures, our 36V 60Ah Trolling Motor Battery gives you a long and steady draw to last even for multi-day fishing trips. Just set it, charge it, and off you go.

TECHNICAL SPECIFICATIONS

• Nominal Voltage 4V
• Nominal Capacity 60Ah
• Parallel Connection Maximum 4 units
• Series Connection No
• Bluetooth Management System (BMS) 12S60A (Available on Android/iOS)
• Charge Voltage 2±0.6
• Standard Charge Current 12A
• Fast Charge Current 30A
• Continuous Discharge Current 150A
• Peak Discharge Current 500A (300ms)
• Discharge Cut-off Voltage 10V
• Cycle Life 3000 cycles @ 100% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD
• Self Discharge Rate Less than 3% per month
• Charge Efficiency 100% @0.2C
• Discharge Efficiency 98-100% @1C
• Operating Charge Temperature Range 0°C to 55°C (32°F to 131°F)
• Operating Discharge Temperature Range -20°C to 60°C (-4°F to 140°F)
• Storage Temperature Range -5°C to 45°C (23°F to 113°F)

Physical Specifications

• Dimensions: 12.11″ x 6.11″ x 8.4″ in
• 330×173×216mm (Group 31)
• Approximate Weight: 37.4 lbs (18 Kg)
• Terminal Type: M8
• Case Color/Material: Black Plastic case (ABS)
• IP Rating: IP65
• Cell Type: Cylindrical LiFePO4 cell

Additional Information
The battery features Bluetooth connectivity, allowing for monitoring via Android and iOS devices.
Compliant with international standards including UL 1642, IEC62133, IEC62619, CE, UN38.3, and ROHS.
Implemented strict quality control measures ensure reliability and consistency.
